Digital Thermometer
- 90-265V AC/DC Universal Power supply input
- 3-Way Isolated
- +/- 1% FSD Accuracy
- 0.1°C Display resolution (in case of indicator)
- 0.01mA resolution in 4-20mA signal O/P
- HV withstand for 2.5KV AC RMS for 1minute

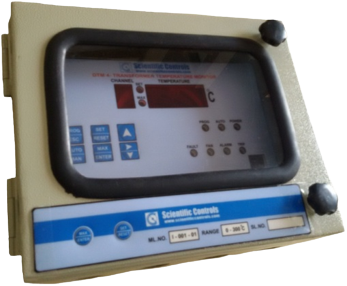

Model: Scanner
- Up to 8-RTD sensor I/P
- 4 Relays
- 4-20mA signal O/P
- RS485-Modbus

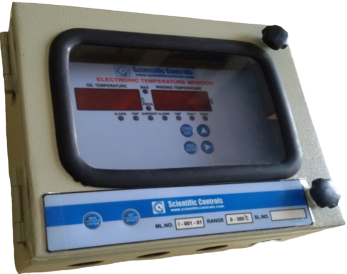

Model: Combined Instrument
- OTI & WTI measurement
- 6-Relays
- Dual 4-20mA signal O/P
- RS-485 Modbus
Model: Digital Thermometer
- RTD I/P
- 2 Relays
- 4-20mA signal O/P
- RS-485 Modbus

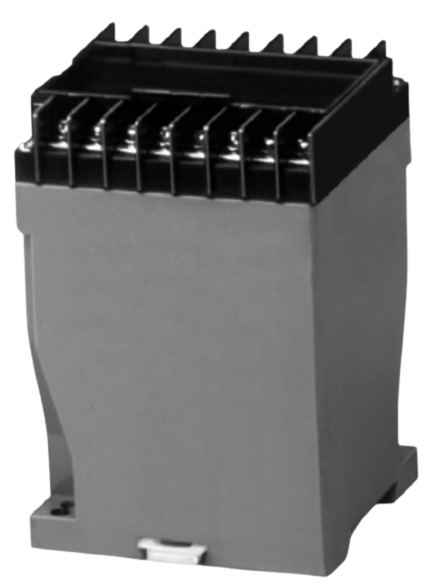

ML: Temperature Transmitter
- RTD I/P
- CT I/P (for WTI)
- Dual 4-20mA signal O/P
- RS-485 Modbus
Model: Internal CCU
- Inside the Thermometer
- Powered from external
- Only 2-wire connection
- Offset & Span adjustable
Model: Hybrid Indicator
- 4 digit 7-segment display
- 0.1°C Resolution
- Powers Internal CCU
- Up to 4 sets of 4-20mA O/P
Model: External CCU
- Outside the Thermometer
- Powered from 90-230V AC/DC
- Dual 4-20mA signal O/P
- Offset & Span adjustable
Model: Remote Indicator
- 4 digit 7-segment display
- 0.1°C Resolution
- Receives 4-20mA signal
- Up to 4 sets of 4-20mA O/P
Organization was formed by a team of likeminded professional technocrats in 2010 with experience in Transformer, Motor & Automation Field
